Protecting a Billion-Dollar Server Farm (or a Priceless Artwork)

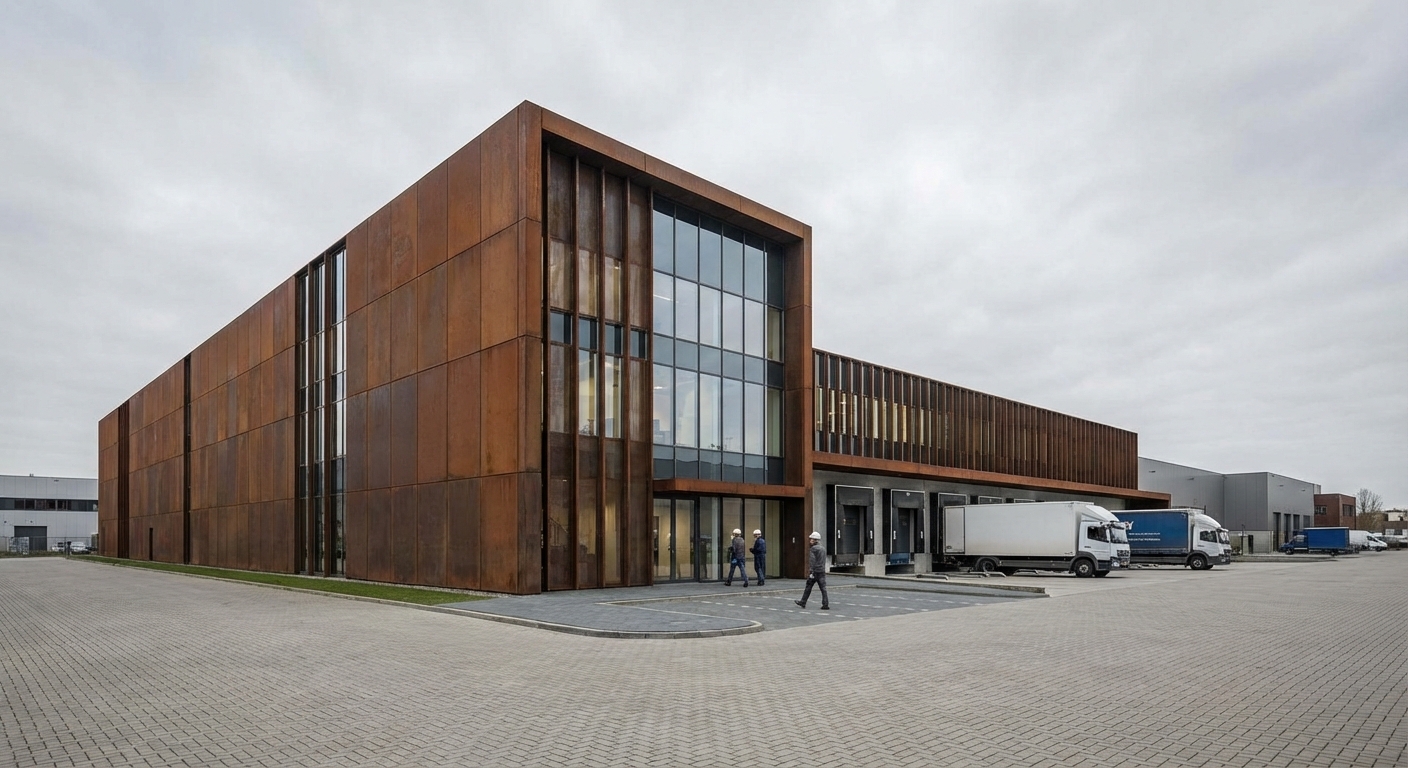

Imagine you're designing the fire protection for a new data centre in Auckland, or perhaps a gallery storing priceless taonga at Te Papa. The fire risk is real, but so is the risk of catastrophic water damage from an accidental sprinkler discharge. A standard wet pipe system, while effective, keeps water sitting directly over mission-critical servers or irreplaceable artefacts, 24/7. One damaged head, and you’ve traded a fire loss for a water loss. So, how do you protect assets from both threats? The answer lies in a clever hydraulic and electronic solution: the pre-action system.
Beyond Wet and Dry: The Pre-action Principle
At its core, a pre-action system is a hybrid that combines the reliability of a wet system with the asset protection of a dry system. The pipes in the protected area are normally dry, filled with air under light supervision. This alone prevents accidental water discharge from a broken pipe or sprinkler head. But unlike a standard dry pipe system, which can be slower to deliver water, a pre-action system uses a secondary detection system—typically smoke or heat detectors—to 'prime' the system before a sprinkler head ever activates. This is where the concept of 'interlocks' comes in, and it's a critical distinction under our governing standard, NZS 4541:2020.
The First Layer of Defence: Single Interlock Systems
A Single Interlock Pre-action System is the most common type. It requires only one event to occur before water is introduced into the pipes.
- The Trigger: A fire detection device (e.g., a smoke or heat detector) in the room sends a signal to the fire alarm panel.
- The Action: The panel electronically trips the main pre-action valve, a robust piece of hardware like the Tyco DV-5A. This valve opens, allowing water to rush in and fill the sprinkler piping.
At this point, the system has effectively become a standard wet pipe system. The pipes are charged and ready. Water will only be discharged when the heat from a fire causes a specific sprinkler head's fusible link to break. Think of it as a two-step process: the smoke detector 'readies' the system, and the sprinkler head 'fires'. This provides excellent protection against a simple mechanical failure like a knocked sprinkler head, as water won’t be in the pipes to begin with.
The Ultimate Failsafe: Double Interlock Systems
For the most sensitive environments—think commercial freezers, server halls, or museum archives—even the risk of a false detector alarm filling the pipes with water is too great. This is where a Double Interlock system provides a second layer of certainty. It requires two independent events to happen before the pre-action valve opens.
- The First Trigger: A fire detection device activates, sending a signal to the panel.
- The Second Trigger: The heat from the fire causes a sprinkler head to fuse, releasing the air pressure in the pipes.
Only when the control panel receives a signal from both the detection system and the loss-of-air-pressure switch on the piping will it energise the solenoid to open the main pre-action valve. This 'two-factor authentication' ensures that water is never introduced into the pipe network unless there is definitive, physical evidence of a real fire at a sprinkler head. Hardware like the Tyco DV-5A is ideal for this application; its diaphragm-style design with a single moving part provides the high reliability needed when the system must work flawlessly after years of standby.
The NZS 4541 Context: Choosing the Right Lock
Here in New Zealand, the choice between single and double interlock isn't just a design preference; it's a risk assessment dictated by the principles of NZS 4541. For a museum gallery, a single interlock system might be perfect. It prevents accidental leaks but ensures a rapid transition to a 'wet' state for fast fire suppression. For a sub-zero commercial freezer, where accidentally filling the pipes with water could cause them to freeze and burst, the double interlock system is the only logical choice. The trade-off is speed. A double interlock system is inherently slower, as it has to wait for the sprinkler head to fuse before water even begins to travel. This delay must be factored into the overall hydraulic design and performance objectives of the system.
Ultimately, pre-action systems are a testament to sophisticated fire engineering. They acknowledge that in protecting a building, we must also protect what's inside it. By requiring a detection event before 'arming' the system, they provide an elegant solution that keeps the water at bay until it's truly needed.
