Why Does Rigidity Matter So Much in a Moving Building?
Ask any structural engineer in New Zealand, and they'll tell you that buildings are designed to move. During a seismic event, a multi-story building can experience significant inter-story drift, where one floor moves laterally relative to the one below it. Now, imagine a rigid steel pipe running through the floors of that swaying building. Without a strategy to manage that movement, the pipe becomes a brittle fuse, destined to snap at the joints. This is where the engineering brilliance of a complete seismic system, including both flexible and rigid components, comes into play.
The common assumption is that for seismic resilience, everything needs to be flexible. That's only half the story. A successful seismic design for sprinkler pipework isn't about letting everything flop around; it's about *controlling* where movement occurs. And to do that, you first need to enforce rigidity everywhere else. This is the precise job of a component like the Victaulic Style 07 Zero-Flex™ Rigid Coupling.

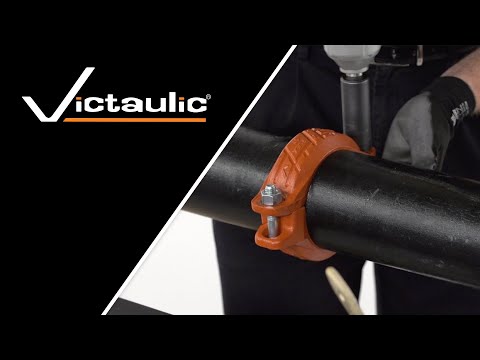

Tech Showcase: The Victaulic Style 07 Zero-Flex™
At first glance, the Style 07 looks like any other grooved pipe coupling. It's a heavy-duty piece of ductile iron, two bolts, two nuts, and a gasket. But the magic is in the geometry. Unlike a standard flexible coupling which permits a few degrees of angular deflection and some axial play, the Style 07 is engineered to prevent it.
Here’s how it works:
- Angle-Pad Design: The bolt pads of the coupling housings are cast at a specific angle. As you tighten the bolts, this design creates offsetting, clamping forces that firmly grip the pipe within the groove. This positive clamping action prevents the pipes from flexing at the joint.
- Zero-Flex™ Performance: The coupling creates a joint that is, for all practical purposes, as rigid as a welded or flanged connection. It resists flexural and torsional loads, ensuring the pipe sections act as a single, continuous element between designated flexible joints.
- Pressure Handling: Depending on the pipe size (it's available for DN25 up to DN300), the Style 07 can handle pressures up to 5171 kPa (750 psi), far exceeding the typical operating pressures of a commercial sprinkler system.
The NZS 4541 Context: A Symphony of Rigid and Flexible
So, how does this fit into our local code, NZS 4541:2020? The standard is very clear on the need for seismic resilience. It mandates that sprinkler systems must be able to withstand seismic events without losing their ability to suppress a fire. This is achieved by using a system of seismic bracing and, crucially, a combination of coupling types.
NZS 4541 requires flexible couplings to be installed at strategic locations, such as at structural separations, where pipes pass through seismic joints in a building, and at specific intervals on long pipe runs. These are the engineered points where we *want* the movement to happen.
But for those flexible couplings to work effectively, the pipework *between* them must be rigid. This is where the Style 07 Zero-Flex™ shines. By installing these rigid couplings along the length of a pipe run, designers ensure that the seismic stresses and movements are transferred along the pipe to the flexible joints and braces, which are specifically designed to absorb them. Without the rigid couplings, the entire pipe network would unpredictably snake and bend, concentrating stress at the weakest points—often the fittings or branch connections.
Think of it like a train. The flexible couplings are the articulated joints between carriages, allowing the train to navigate curves. The rigid Style 07 couplings are the solid chassis of each carriage, ensuring they don't buckle or deform along their length. Both are essential for the system to work as a whole.
The Bottom Line for Designers and Installers
For the fire protection designer in Wellington, Christchurch, or anywhere in our shaky isles, the Victaulic Style 07 isn't just a piece of hardware; it's a tool for executing a compliant and robust seismic design. It provides the predictable rigidity needed to make the overall flexible system safe and effective.
For the installer on site, the grooved system is already a massive time-saver compared to welding. The clear distinction between a flexible and a rigid coupling ensures the design intent is carried through to the final installation. There's no ambiguity. When the plans call for a rigid joint, the Style 07 delivers, ensuring the sprinkler system built today will be ready to perform when it's needed most—even after the ground has finished shaking.
